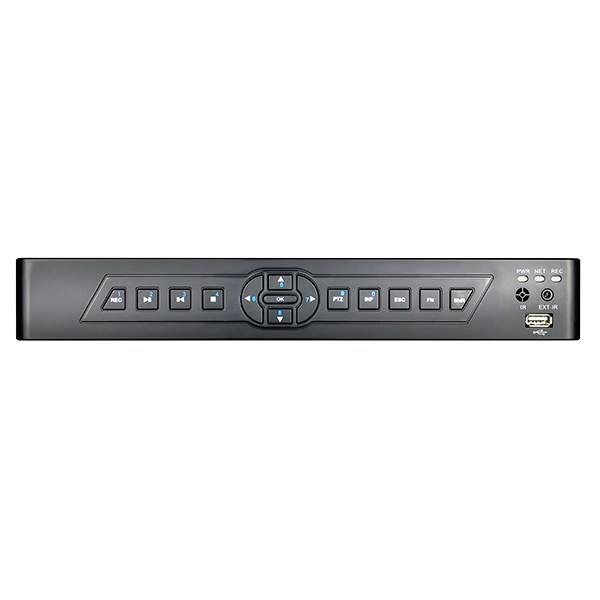

OP4108T-FT- Advanced Level 8 Channel HD-TVI DVR - Compact Case

 Video / Audio input

 Video compression

H.264

 HD-TVI video input

8ch

 Video input interface

BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adapive

 IP input

2ch(1080p@30fps)

 Audio compression

G.711A

 Audio input

1-ch, RCA(2.0 Vp-p, 1 kΩ)

 Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ)

 Video / Audio output

 HDMI / VGA output

1920 x 1080,1280 x 1024, 1280 x 720, 1024 x 768/60 Hz

 CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

 Encoding resolution

Main stream: 1080P(non-real-time) / 720P / WD1 / 4CIF
Sub-stream: CIF / QCIF

 Frame rate

Main stream: 1fps ~ Real time frame rate
Sub-stream: 1fps ~ Real time frame rate

 Video bit rate

1280 Kbps-7168 Mbps

 Audio output

1-ch, RCA (Linear, 1 kΩ)

 Audio bit rate

64 Kbp

 Dual-stream

Support

 Stream type

Video, Video & Audio

 Synchronous playback

8-ch

 Playback resolution

1080P / 720P / WD1 / 4CIF / CIF / QCIF

Network

Remote connections

10

Network protocols

TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

SATA

1 SATA interfaces

Capacity

Up to 4TB capacity for each disk

External interface

Network interface

10M / 100M / 1000M

Serial interface

1; standard RS-485 serial interface, half-duplex

USB port

2 × USB2.0

Alarm in/out

No

General

Power supply

DC 12V

Consumption

≤ 10 W

Working temperature

-0 °C ~ +55 °C(32°F - 131°F)

Working humidity

10% ~ 90%

Dimension

12.6 × 9.6 × 2.0"
320 ×245 × 50mm

Weight (without hard disk)

≤ 3.3 lb (1.5Kg)
