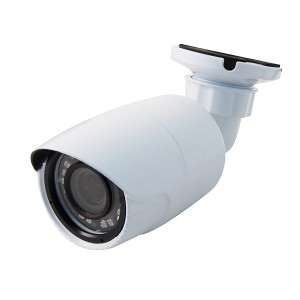

OP-VC-CA-31T-330 Analog-960H/HD-(SDI+CVI) 1080P/2MP 3-IN-1 Small Bullet Camera 1/3" PANASONIC CMOS EYENIX 3.6mm 24-IR LED @ 65ft OSD White

Overview

Sensor (CMOS)

High-performance CMOS image sensor, with millions of pixels in resolution.

• Auto Gain Control

  Built-in auto gain control (AGC) circuit. High definition pictures in Low Lux conditions.

• Auto Electronic Shutter (AES)

  Built-in auto electronic shutter function. AES speed can reach 1/30000s

• Gamma Characteristic

  Camera Gamma characteristic is 0.45

• Scanning Mode

  NTSC or PAL mode

• Night-time Vision

  0 Lux with IR LED ON. High quality IR LED, with very good night-vision

Packing List

• 1 x Bullet Day/IR Color Camera
• 1 x User Guide
• Accessories
  • Mounting Screws / Anchors

Specifications

Type HD-SDI/960H/CVI Image Device 1/3" Panasonic CMOS Megapixels 2MP Lens 3.6mm Effective Pixels 1920 (H) x 1080 (V) Video Output Level HD-SDI, EX-SDI, CVBS Video Output Mode 1080p (1920x1080) Minimum Illumination 0 Lux (with IR LED ON) Electronic Shutter PAL: 1/25s~1/30,000s, NTSC: 1/30s~1/30,000s S/N Ratio More than 48dB Body Color White White Balance Auto IR LED 24 Units up to 65 Feet IR Power On CDS Auto Control IR Status Under 10 Lux by CDS Automatic Gain Control Auto Day and Night Auto OSD Yes Power Source 12v DC(+/- 10%) Power Consumption 400mA Operating Temperature -22F° / +113F° (-10C° / +45C°) Dimensions 3.7" x 3.7" Weight 0.82 lb Warranty 1 Year Warranty
