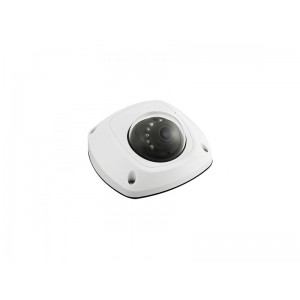

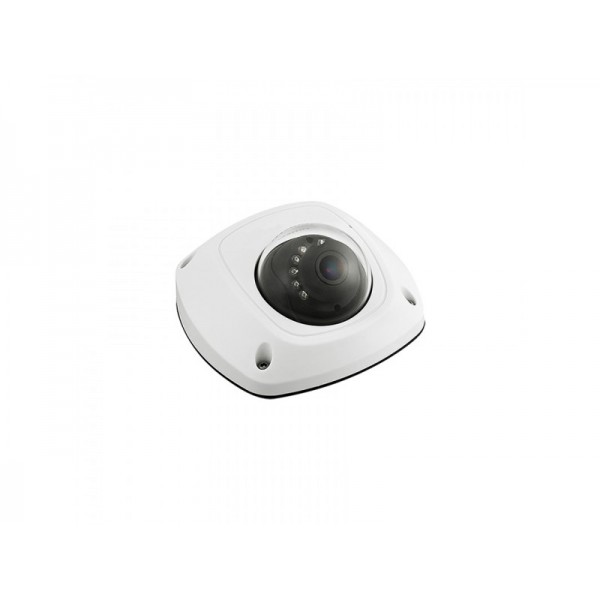

4MP HD IP Camera (H Series) | NC304-WD
Features:
- 1/3" 4MP CMOS Sensor
- ICR, WDR, 3D DNR, BLC
- 20fps@4MP, 30fps@2MP
- 2.8mm Fixed Lens, IR LEDs
- Audio I/O, Alarm I/O
- microSD (up to 128GB)
- DC 12V/PoE
- IP66
Specifications:
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 2688 × 1520 |
| Electronic Shutter | 1/3 s to 1/10,000 s |
| Mini. Illumination | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Lens Focal Length | 2.8mm @ F2.0 Fixed Lens |
| Adjustment Range | Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360° |
| Camera Features | |
| IR LEDs Distance | Up to 10m |
| Day / Night | IR cut filter with auto switch |
| Noise Reduction | 3D DNR |
| BLC | Yes, zone configurable |
| WDR | 120 dB |
| Function | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Video | |
| Video Compression | H.264/MJPEG/H.264+ |
| Frame Rate | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) ; 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
| Bit Rate | 32Kbps~16Mbps |
| ROI | Supports |
| Video & Audio | |
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Audio In | 1-ch 3.5 mm audio in (Mic in/Line in) |
| Audio Out | out interface (-S model) |
| Alarm | |
| Trigger Events | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Network | |
| Ethernet | 1 RJ45 10M / 100M Ethernet interface |
| Network Storage | NAS (Supports NFS, SMB/CIFS), ANR |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Network Security | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
| Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Storage | |
| Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Auxiliary Interface | |
| Alarm | 1x alarm I/O |
| Reset Button | Yes |
| General | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption | Max. 5W |
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F); Humidity 95% or less (non-condensing) |
| Protection | IK08, IP66 |
| Dimensions | 99.3×96.7×52.8 mm |
| Weight | 600 g (1.32 lbs) |
