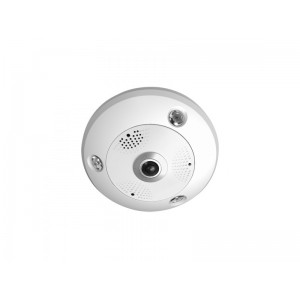

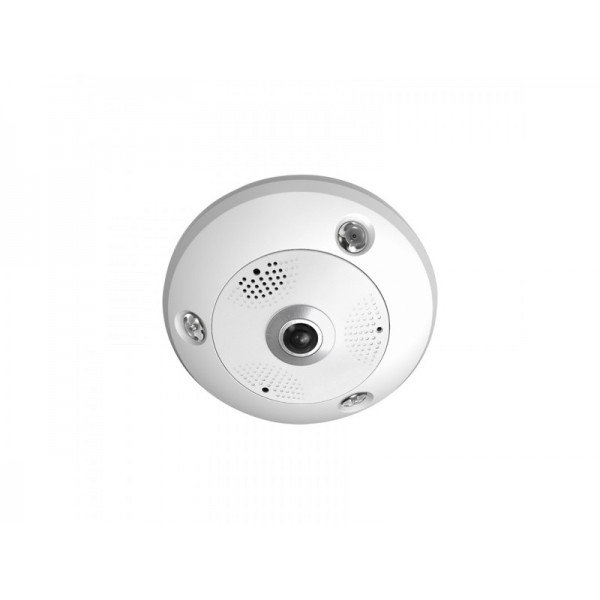

6MP HD IP Fisheye Camera (H Series) | NCA06-FNA

​​​Features:

• 1/1.8”progressive scan CMOS
• 6 megapixel image sensor
• Up to 3072 × 2048 real-time streaming
• 360°view angle
• Multiple viewing modes
• Multiple ePTZ streams with preset and patrol functions
• Ceiling, Wall or Table mount modes
• Up to 30ft IR range
• microSD

​​​Specifications:

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Effective Pixels	3072 × 2048
Electronic Shutter	1/25 (1/30)s ~ 1/100,000s
Mini. Illumination	0.05lux @(F1.2, AGC ON) / 0.3lux @(F2.8, AGC ON) / 0 lux with IR
Camera Features
IR LEDs Distance	30Ft
Day / Night	ICR
Noise Reduction	3D DNR
WDR	Digital WDR
Lens
Angle of View	360°
Focal Lens	1.27mm @F2.8, angle of view: 360°
Video
Frame Rate	High-frame Mode: supports 50Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 25fps) or 4 x PTZ at (1024 x 768, 30fps); 60Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 30fps) or 4 x PTZ at (1024 x 768, 30fps); Multi-channel Mode: supports 50Hz: 1 x fisheye (1280 x 1280, 12.5fps) and 1 x panoramic (2048 x 1536, 12.5fps) and 3 x PTZ (1024 x 768, 12.5fps); 60Hz: 1 x fisheye (1280 x 1280, 15fps) and 1 x panoramic (2048 x 1536, 15fps) and 3 x PTZ (1024 x 768, 15fps)
Bit Rate	32 Kbps ~ 16 Mbps
Video & Audio
Audio In	n/a
Audio Out	n/a
Alarm
Trigger Events	Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Network
Ethernet	1 RJ45 10M / 100M ethernet interface
Protocol	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Compatibility	ONVIF, PSIA, CGI, ISAPI
Storage
Storage	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
General
Power Supply	DC 12V ± 10%, PoE (802.3af)
Power Consumption	Max. 11W
Working Environment	-30 °C ~ 60 °C (-22 °F ~ 140 °F); Humidity 95% or less (non-condensing)
Dimensions	164 x 152.8 x 43.8mm (6.46”x6.02”x1.72”)
Weight	3.1Lbs (1400g)
