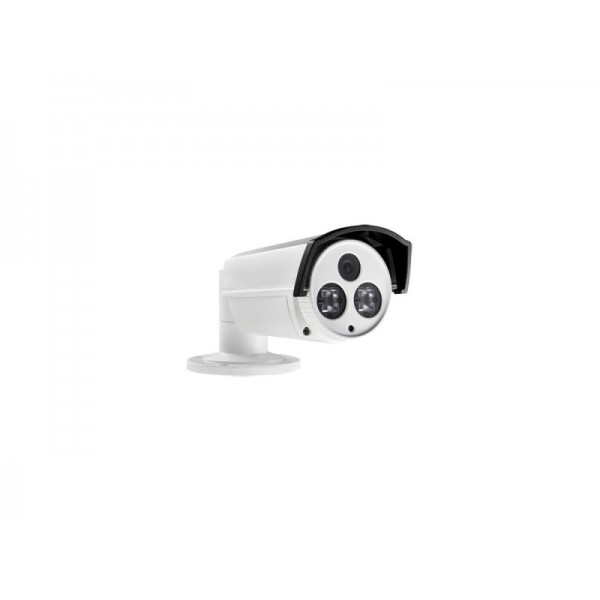

3MP HD IP Camera (H Series) | NC303-XB

Brand: H Series
Product Code: OP-NC303-XB
Availability: In Stock

Qty:

- OR -

Description Reviews (0)

Features:

Specifications:

Camera
Image Sensor	1/3" Progressive Scan CMOS
Effective Pixels	2048 × 1536
Electronic Shutter	1/25s (1/30s) ~ 1/100,000s
Mini. Illumination	0.07 lux @F1.2, AGC ON, 0 lux with IR
Camera Features
IR LEDs Distance	Up to 50m
Day / Night	ICR
Backlight Compensation	Yes, zone configurable
Noise Reduction	3D DNR
WDR	Digital WDR
Lens
Angle of View	2048 × 1536: Angle of view: 70°(4mm) 1920 × 1080: Angle of view: 79°(4mm)
Focal Lens	4mm@ F2.0
Video
Frame Rate	50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720) 60Hz: 20fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
Bit Rate	32 Kbps~16Mbps
Alarm
Trigger Events	Motion detection, tampering alarm
Network
Ethernet	1 RJ45 10 M / 100 M Ethernet interface
Protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS
General
Power Supply	DC 12V ± 10%; PoE (802.3af)
Power Consumption	Max. 7W
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
Protection	IP66
Dimensions	105×104.8×263.1mm (4.13” × 4.13” × 10.38”)
Weight	700g (1.5 lbs)
