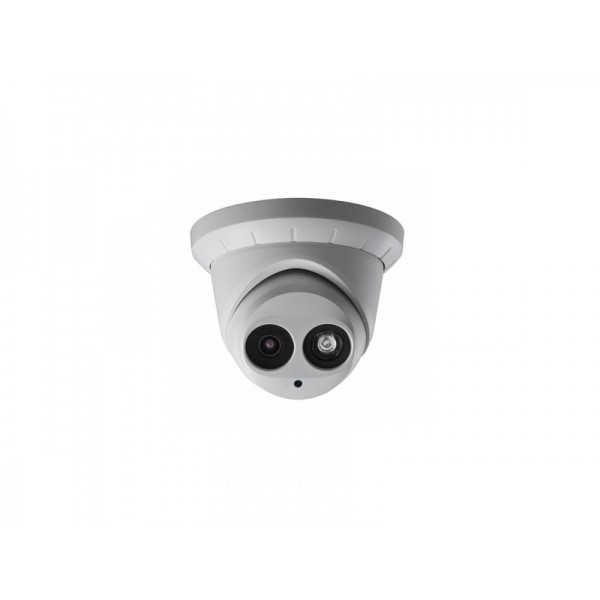

4MP HD IP Camera (H Series) | NC304-XT-4

Brand: H Series
Product Code: OP-NC304-XT-4
Availability: In Stock

Qty:

- OR -

Description Reviews (0)

Features:

Specifications:

Camera
Image Sensor	1/3" Progressive Scan CMOS
Effective Pixels	2688 × 1520
Electronic Shutter	1/3 s to 1/10,000 s
Mini. Illumination	0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Lens Focal Length	4mm @ F2.0 Fixed Lens
Adjustment Range	Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Camera Features
IR LEDs Distance	Up to 30m
Day / Night	IR cut filter with auto switch
Noise Reduction	3D DNR
BLC	Yes, zone configurable
WDR	120 dB
Video
Video Compression	H.264/MJPEG/H.264+
Frame Rate	50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) ; 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Bit Rate	32Kbps~16Mbps
ROI	Supports
Alarm
Trigger Events	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Network
Ethernet	1 RJ45 10M / 100M Ethernet interface
Network Storage	NAS (Supports NFS, SMB/CIFS), ANR
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Network Security	Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
General
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 5.5W (Max. 7.5W with ICR on)
Working Environment	-30 °C ~ 60 °C (-22 °F ~ 140 °F); Humidity 95% or less (non-condensing)
Protection	IP66
Dimensions	Φ127×97.5 (5.0” × 3.8”)
Weight	670g (1.5 lbs)
