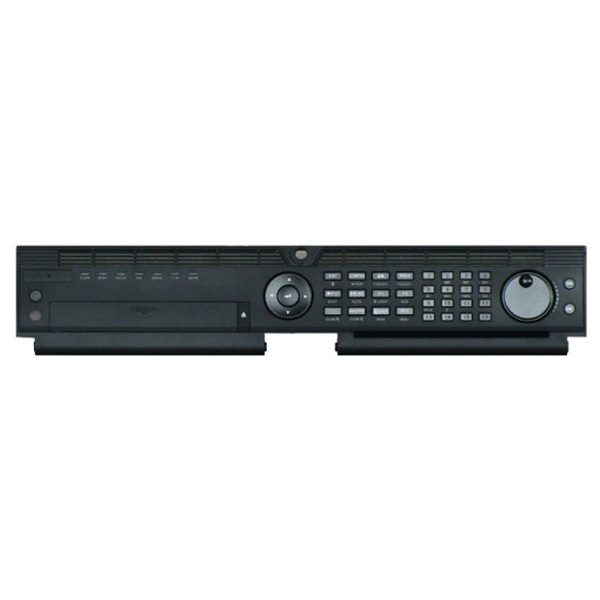

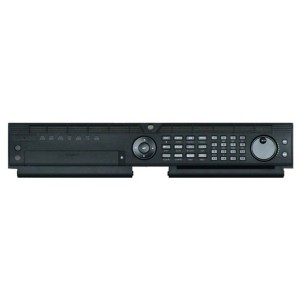

NRT00-64 | 64CH NVR (H Series)

​​​Features:

• 64 channel IP camera input
• Third-party network camera supported
• Up to 5 Mega pixel (2560×1920) recording resolution
• Simultaneous HDMI, VGA and CVBS output
• HDMI and VGA output up to 1920 x 1080P resolution
• Dual gigabit network interfaces
• eSATA interface for recording or archiving
• 8 x SATA, (Up to 6TB for each disk)
• Flip open front panel for easy HDD installation
• 16-ch 4CIF synchronous playback
• JPEG picture capture and playback
• Tag video clip, search and playback by tag
• Digital zoom on live view and playback

​​​Specifications:

Video & Audio
CVBS Output	1CH, BNC (1.0 Vp-p, 75 Ω), Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
HDMI Output	1CH, resolution: 1920 × 1080P / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1024 × 768 / 60Hz
IPC Input	64CH
VGA Output	1CH, resolution: 1920 × 1080P / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1024 × 768 / 60Hz
Audio Out	2CH, BNC (Linear, 600 Ω)
2-Way Audio	1CH, BNC (2.0 Vp-p, 1 kΩ)
Recording
Recording Resolution	5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF
Alarm
Alarm In	16CH
Alarm Out	4CH
Playback
Playback	16CH 4CIF
Playback Resolution	5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF
Network
Ethernet	10M / 100M / 1000M self-adaptive Ethernet interface, dual IP, load balancing, network redundancy
PoE Ports	N/A
Bandwidth	Up to 160Mbps input, 160Mbps output, up to 128 network streams
Storage
Internal HDD	8 x SATA, (Up to 6TB for each disk)
External HDD	1 x eSATA
Array Type	RAID0, RAID1, RAID5, RAID10
Number of Array	4
Auxiliary Interface
USB	2 x USB2.0
RS485	Yes, for Keyboard
RS232	Yes
General
Power Supply	100~240 VAC, 6.3A, 50~60Hz
Power Consumption	≤45W
Working Environment	-10°C ~ +55°C (14 °F ~ 131 °F), Humidity: 10% ~ 90%
Dimensions	445 × 470 × 90 mm (17.52" ×18.5"× 3.54"), 19" rack mountable 2U chassis
Weight	≤ 8 kg (17.64 lb) ( without hard disk or DVD-R/W )
