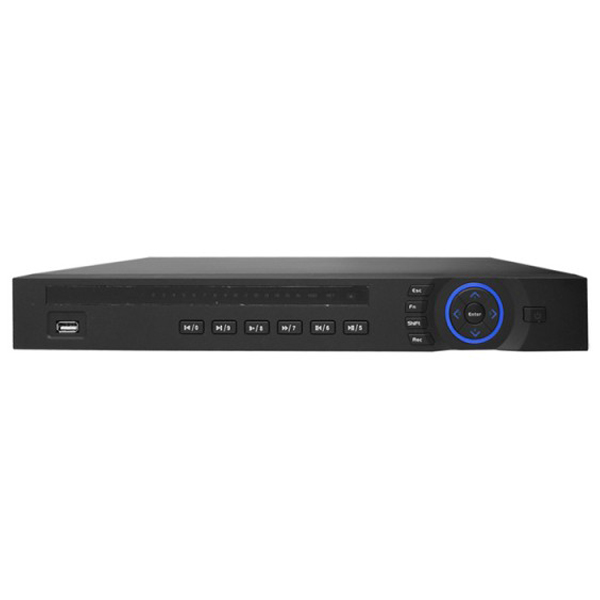

NVR4208 | 8CH NVR (NV Series)

​​​Features:

• Up to 8/16/32 channel IP camera input
• H.264/MJPEG dual codec decoding
• Max 200Mbps incoming bandwidth
• Up to 5MP resolution preview&playback
• HDMI/VGA simultaneous video output
• 4/8/16 channel synchronous realtime playback, GRID interface
• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
• ONVIF Version 2.3 conformance
• 3D intelligent positioning with Dahua PTZ camera
• Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
• Support IPC UPnP,8PoE ports
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

​​​Specifications:

Video & Audio
IPC Input	8CH
2-Way Audio	1CH Input, 1CH Output, BNC
Display
Interface	1 HDMI, 1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution	5MP2560×1920/3MP2048×1536/1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)&etc.
Record Rate	200Mbps
Bit Rate	48~ 8192kbps
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Backup Mode	USB Device / Network / Internal SATA burner
Alarm
Alarm In	4CH
Alarm Out	2CH Relay Out
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email,FTP, Buzzer & Screen tips
Playback
Playback	1/4/9
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Funciton	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Network
Ethernet	1 RJ-45 port (10/100/1000Mbps)
PoE Ports	N/A
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max User Access	128 Users
Smart Phone	iPhone, iPad, Android, Windows Phone
Storage
Internal HDD	2 SATA ports, up to 8TB, Raid (Redundancy)
Auxiliary Interface
USB	2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS485	1 port, For PTZ control
RS232	1 port, For PC communication&Keyboard
General
Power Supply	DC12V/4A
Power Consumption	20W (without HDD)
Working Environment	-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimensions	1U, 375mm×285mm×50mm
Weight	2.3KG(without HDD)
