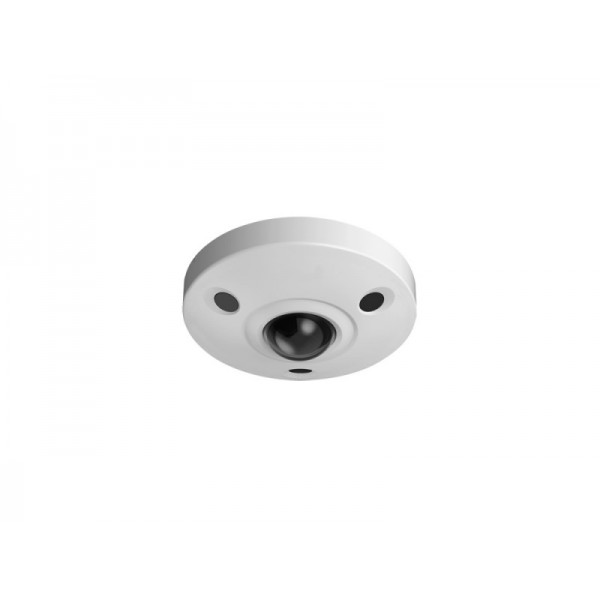

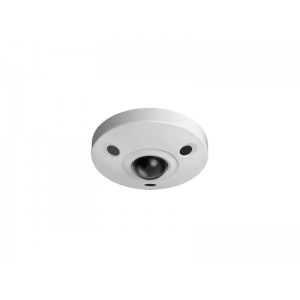

4K Ultra HD IP Camera | IPC-EBW81200

Brand: Dahua
Product Code: OP-IPC-EBW81200
Availability: In Stock

Qty:

- OR -

Description Reviews (0)

Features:

Specifications:

Camera
Image Sensor	1/2.3” 4K progressive scan CMOS
Effective Pixels	4000（H）*3000（V）
Electronic Shutter	Auto/Manual, 1/3(4)~1/10000s
Mini. Illumination	0.01Lux/F2.2(Color), 0Lux/F2.2(IR on)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
IR LEDs Distance	10m
Day / Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Privacy Masking	Up to 4 areas
Scanning System	Progressive
White Balance	Auto / Manual
Lens
Angle of View	185°/185°/185°
Focal Lens	1.57mm
Lens Type	Manual
Max Aperture	F2.2
Mount Type	Board-inType
Video
Video Resolution	12M(4000×3000)/8M(2880×2880)/6M(2880×2160)/3M(2048×1536)
Frame Rate	Main Stream 12M(1~15fps)/3M (1 ~ 25/30fps) Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate	40Kbps~8192Kbps
Audio
Compression	G.711a/G.711u/PCM
Interface	1/1 channel In/Out(Built in Mic)
Alarm
Mode	Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures
Network
Wi-Fi	N/A
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE,IPv4/v6,SNMP,QoS,UPnP,NTP
Max User Access	20 Users
Smart Phone	iPhone, iPad, Android, Windows Phone
Compatibility	ONVIF, PSIA, CGI
Auxiliary Interface
Memory Slot	Micro SD
RS485	N/A
Alarm	2/1 channel In/Out
PIR Sensor Range	N/A
General
Power Supply	DC12V, PoE (802.3af)
Power Consumption	<13W
Working Environment	-30°C~+60°C , Less than 95%RH
Protection	IP67
Vandal Resistance	IK10
Dimensions	Φ150mm x 50.7mm
Weight	0.58kg(0.86kg with packaging )
