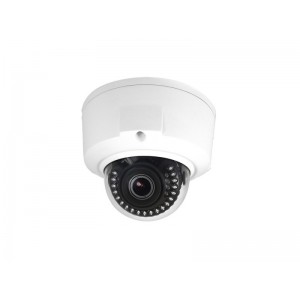

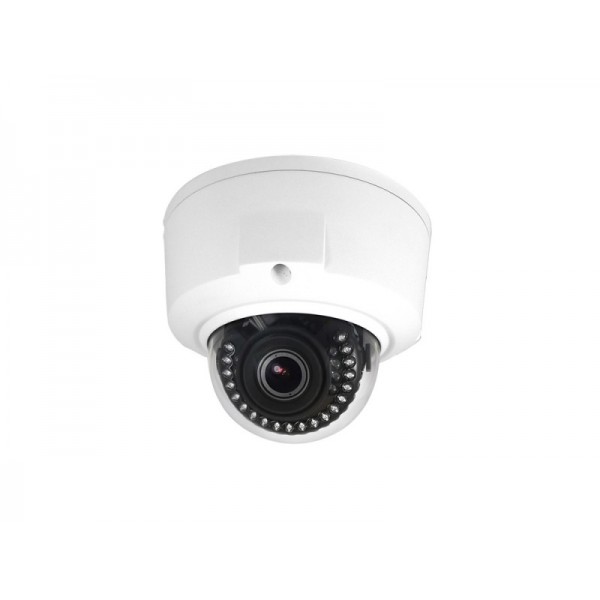

3MP IR Vandal Dome Camera | IPC-HDBW5300
Features:
- 1/3” 3MP Aptina Sensor
- Max 20fps@3MP & 25/30fps@2MP
- DWDR, ICR, 3D DNR, AWB, AGC, BLC
- 2.7~12mm Vari-focal Lens
- 1/1CH Audio In/Out
- 1/1CH Alarm In/Out
- microSD
- DC 12V/AC 24V/PoE
- IP66 & IK10
Specifications:
| Camera | |
| Image Sensor | 1/3” 3Megapixel Aptina Sensor |
| Effective Pixels | 2048(H)x1536(V) |
| Electronic Shutter | Auto/Manual 1/3~1/10000 |
| Mini. Illumination | Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on) |
| S/N Ratio | More than 50dB |
| Video Output | 1port |
| Camera Features | |
| IR LEDs | 28 IR LED |
| IR LEDs Distance | 20m |
| Day / Night | Auto(Electronic) / Color / B/W |
| Backlight Compensation | BLC / HLC / DWDR |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Privacy Masking | Up to 4 areas |
| Scanning System | Progressive |
| White Balance | Auto |
| Lens | |
| Angle of View | H: 82°(Wide)~25°(Tele) |
| Focal Control | Manual |
| Focal Lens | 2.7~12mm Vari-Focal Lens |
| Lens Type | Manual /Auto Iris(DC) |
| Max Aperture | F1.4 |
| Mount Type | Board-in Type |
| Video | |
| Video Resolution | 3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576) /CIF(352×288) |
| Frame Rate | 3M(1~20fps)/1080P/720P(1~25/30fps)/D1/CIF(1~ 25/30fps) |
| Bit Rate | H.264: 32K ~ 8192Kbps |
| Audio | |
| Compression | G.711a / G.711u/ PCM |
| Interface | 1/1 channel In/Out |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Max User Access | 20 Users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Compatibility | ONVIF Profile S |
| Auxiliary Interface | |
| Memory Slot | Micro SD, Max 64GB |
| RS485 | N/A |
| Alarm | 1/1 channel In/Out |
| PIR Sensor Range | N/A |
| General | |
| Power Supply | DC12V/AC24V, PoE(802.3af) |
| Power Consumption | Max 5W (Motorized lens: +3.5W) |
| Working Environment | -20°C~+60°C, Less than 95% RH |
| Protection | IP66 |
| Dimensions | Φ151mm×119mm |
| Weight | 1.25kg |
