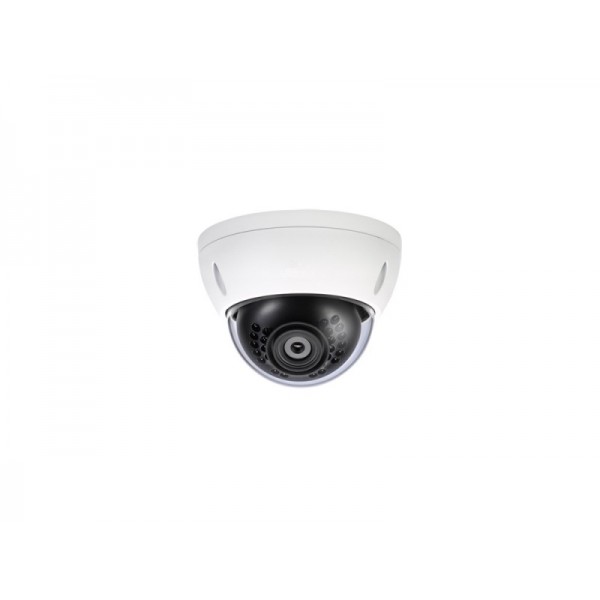

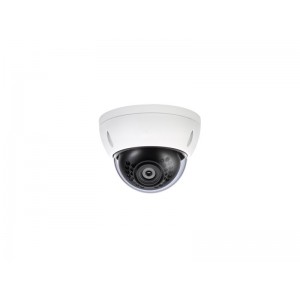

3MP HD IP Camera | IPC-HDBW4300E

Brand: Dahua
Product Code: OP-IPC-HDBW4300E
Availability: In Stock

Qty:

- OR -

Description Reviews (0)

Features:

Specifications:

Camera
Image Sensor	1/3” 3Megapixel progressive scan CMOS
Effective Pixels	2052(H)x1536(V)
Electronic Shutter	Auto/Manual, 1/3(4)~1/10000s
Mini. Illumination	0. 1Lux/F1.8 (Color), 0.01Lux/F1.8(B/W)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
IR LEDs	24IR
IR LEDs Distance	30m
Day / Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Privacy Masking	Up to 4 areas
White Balance	Auto / Manual
Lens
Angle of View	H: 72.5°/90°/44°
Focal Lens	3.6mm Fixed Lens
Max Aperture	F1.8(F2.0/F1.8)
Video
Video Resolution	3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate	Main Stream: 3M(1~20fps)/ 1080P/720P(1 ~ 25/30fps) / Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8192Kbps
Video & Audio
Audio In	1CH In
Audio Out	1CH Out
Network
Wi-Fi	N/A
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Max User Access	20 Users
Smart Phone	iPhone, iPad, Android, Windows Phone
Compatibility	ONVIF, PSIA, CGI
Auxiliary Interface
Memory Slot	Micro SD Max 64GB(-AS/-S)
RS485	N/A
Alarm	1/1 channel In/Out(-AS)
PIR Sensor Range	N/A
General
Power Supply
Power Consumption	DC12V, PoE (802.3af)
Working Environment	-30°C~+60°C, Less than 95% RH
Protection	IP66
Vandal Resistance	IK10
Dimensions	Φ110mm×81mm
Weight	0.39Kg
