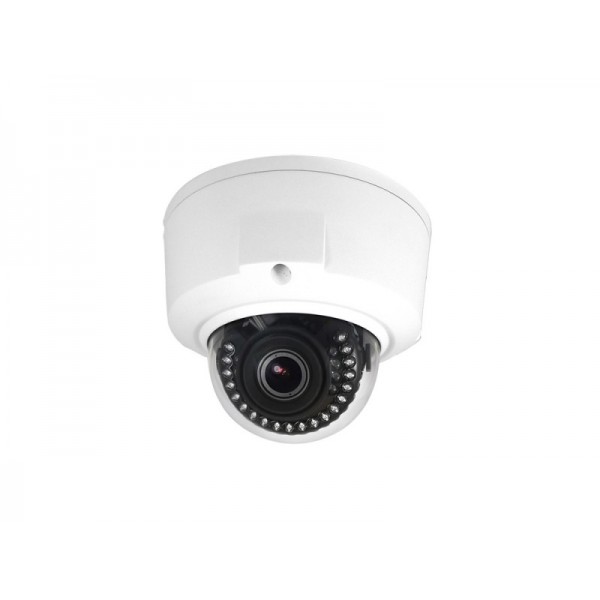

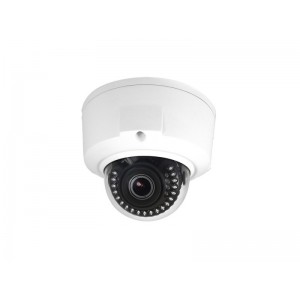

3MP Ultra Smart HD IP Camera | IPC-HDBW8301

​​​Features:

• 1/3" 3MP Aptina Sensor
• Max 25/30fps@3MP
• Ultra WDR, 3D DNR, Defog, ROI, EIS, Smart detection: Face/Tripwire/Instrusion/Scene Change Detection
• Smart IR Technology
• Audio In/Out, Alarm In/Out
• 3~9mm Vari-Focal Lens
• microSD
• DC 12V/AC 24V/PoE
• IP66 & IK10

​​​Specifications:

Camera
Image Sensor	1/3” 3Megapixel Aptina CMOS
Effective Pixels	2048(H)x1536(V)
Electronic Shutter	Auto/Manual 1/3~1/10000
Mini. Illumination	Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2
S/N Ratio	More than 50dB
Video Output	1 port
Camera Features
IR LEDs Distance	20m
Day / Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / WDR (120dB)
Gain Control	Auto / Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
White Balance	Auto
Lens
Angle of View	H: 85.6°(Wide)~28.6°(Tele)
Focal Lens	3 -9mm motorized
Max Aperture	F1.4
Video
Video Resolution	3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576)
Frame Rate	Main Stream 3M/1080P (1~25/30fps) Sub Stream D1/CIF(1 ~ 25/30fps) Third Stream 1080P/720P/D1(1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8192Kbps
Video & Audio
Audio In	1CH In
Audio Out	1CH Out
Network
Wi-Fi	N/A
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Max User Access	20 Users
Smart Phone	iPhone, iPad, Android, Windows Phone
Compatibility	ONVIF, PSIA, CGI
Auxiliary Interface
Memory Slot	Micro SD Max 64GB
RS485	N/A
Alarm	1/1 channel In/Out
PIR Sensor Range	N/A
General
Power Supply	DC12V/AC24V, PoE(802.3af)
Power Consumption	<12W (IR on: +2W)
Working Environment	-30°C~+60°C , Less than 95%RH
Protection	IP66
Vandal Resistance	IK10
Dimensions	Φ151mm×119mm
Weight	1.25kg
