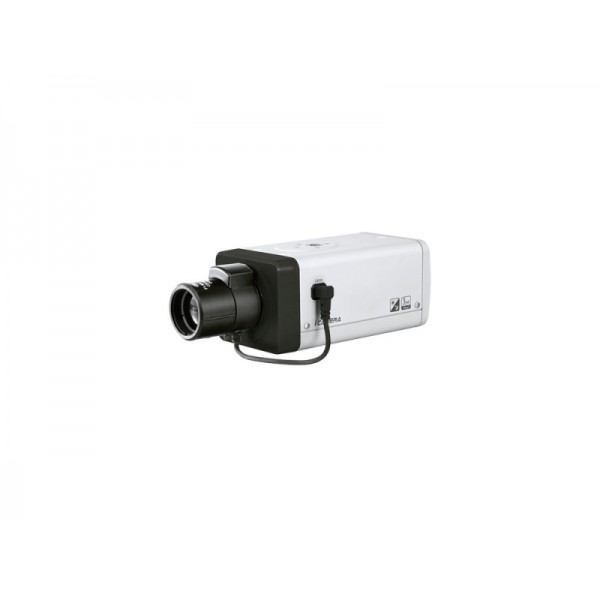

3MP Ultra Smart HD IP Camera | IPC-HF8301E

​​​Features:

• 1/3" 3MP Aptina Sensor
• Max 25/30fps@3MP
• Ultra WDR, 3D DNR, Defog, ROI, EIS, Smart detection: Face/Tripwire/Intrusion/Scene Change Detection
• Auto Back Focus
• Audio In/Out
• microSD, DC 12V/AC 24V/PoE

​​​Specifications:

Camera
Image Sensor	1/3” 3Megapixel CMOS
Effective Pixels	2048(H)x1536(V)
Electronic Shutter	Auto/Manual, 1/4~1/10000s
Mini. Illumination	0. 1Lux/F1.2(Color), 0.01Lux/F1.2(B/W)
S/N Ratio	More than 50dB
Video Output	1 channel BNC（1.0Vp-p,75Ω）
Camera Features
IR LEDs Distance	N/A
Day / Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Privacy Masking	Up to 4 areas
EIS	Support
Scanning System	Progressive
Defog	Support
White Balance	Auto / Manual
Lens
Mount Type	C/CS
Video
Video Resolution	3M(2048×1536)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288)
Frame Rate	Main Stream 3M/1080P (1~25/30fps) Sub Stream D1/CIF(1 ~ 25/30fps) Third Stream 1080P/720P/D1(1 ~ 25/30fps)
Bit Rate	H.264: 48K ~ 8192Kbps
ROI	Up to 4 areas
Audio
Compression	G.711a/G.711u/PCM
Interface	1/1 channel In/Out
Intelligent Function
Smart detection	Tripwire Intrusion Scene change Missing/Abandoned Audio detect Face detect
Alarm
Mode	Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures
Network
Wi-Fi	N/A
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Max User Access	20 Users
Smart Phone	iPhone, iPad, Android, Windows Phone
Compatibility	ONVIF, PSIA, CGI
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	N/A
Alarm	2/1 channel In/Out
General
Power Supply	DC12V/AC24V, PoE (802.3af)
Power Consumption	Max 3.5W
Working Environment	-30°C~+60°C , Less than 95%RH
Protection	N/A
Dimensions	74.1mm×65.5mm×135.4mm
Weight	0.3Kg
