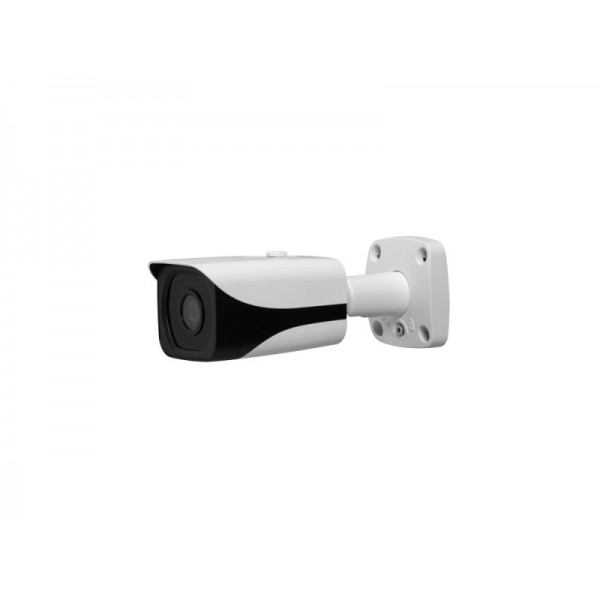

4K Ultra HD IP Camera | IPC-HFW4800E

​​​Features:

•  1/2.3” 4K progressive scan CMOS
•  H.264 &MJPEG dual-stream encoding
•  Max 7fps@4K(3840×2160)
•  DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
•  Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
•  4mm fixed lens
•  Max. IR LEDs Length 30m
•  IP66, PoE

​​​Specifications:

Camera
Image Sensor	1/2.3” 4K progressive scan CMOS
Effective Pixels	3840(H)x2160(V)
Electronic Shutter	Auto/Manual, 1/3(4)~1/10000s
Mini. Illumination	Color: 0. 01Lux/F1.6; 0Lux/F1.6(IR on)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
IR LEDs Distance	30m
Day / Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Privacy Masking	Up to 4 areas
Scanning System	Progressive
White Balance	Auto / Manual
Lens
Angle of View	H:80°
Focal Control	Manual
Focal Lens	4mm
Lens Type	Fixed lens
Max Aperture	F1.6
Mount Type	Board-inType
Video
Video Resolution	4K(3840×2160)3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate	Main Stream 4K(1~7fps)/3M/1080P/ (1 ~ 25/30fps) Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 20K ~ 16Mbps
Audio
Compression	N/A
Interface	N/A
Network
Wi-Fi	N/A
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Max User Access	20 Users
Smart Phone	iPhone, iPad, Android, Windows Phone
Compatibility	ONVIF, PSIA, CGI
Auxiliary Interface
Memory Slot	N/A
RS485	N/A
Alarm	N/A
PIR Sensor Range	N/A
General
Power Supply	DC12V, PoE (802.3af)
Power Consumption	<7.5W
Working Environment	-30°C~+60°C , Less than 95%RH
Protection	IP66
Vandal Resistance	N/A
Dimensions	178.4mm×70mm×69.9mm
Weight	528g(683.4g with packaging)
