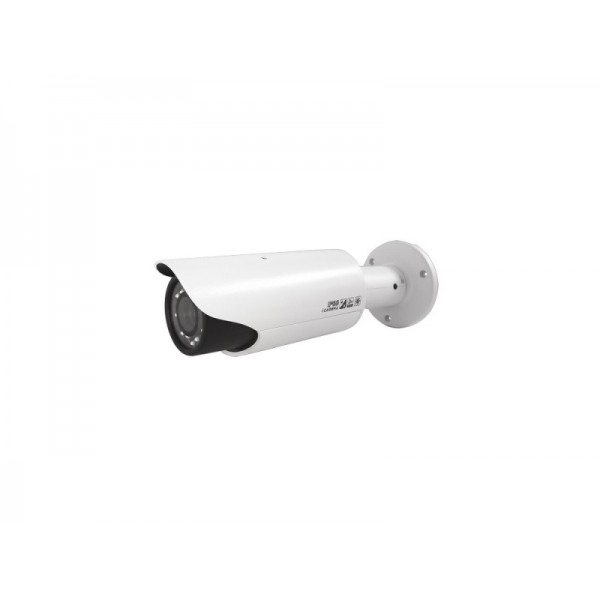

3MP HD IP Camera | IPC-HFW5302C-0309M
Features:
- 1/3" 3MP Aptina Sensor
- Max 20fps@3MP & 25/30fps@2MP
- DWDR, ICR, 3D DNR, AWB, AGC, BLC
- 3~9mm Motorized Lens, Auto Iris
- Audio In/Out, 2/1 Alarm In/Out
- microSD, DC 12V/PoE
- DC 12V/PoE
- IP66
Specifications:
| Camera | |
| Image Sensor | 1/3” 3Megapixel Aptina CMOS |
| Effective Pixels | 2048(H)x1536(V) ; Progressive |
| Electronic Shutter | Auto / Manual, 1/3~1/10000s |
| Mini. Illumination | Color: 0. 01Lux/F1.2, 0Lux/F1.2(IR on) |
| S/N Ratio | More than 50dB |
| Video Output | 1CH, BNC(1.0Vp-p/75Ω) |
| Camera Features | |
| IR LEDs | 18 Super IR |
| IR LEDs Distance | 98ft (30m) |
| Day / Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / DWDR |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Privacy Masking | Up to 4 areas |
| White Balance | Auto/Manual |
| Lens | |
| Angle of View | H:82°(Wide)~25°(Tele) |
| Focal Control | Vari- Focal Control |
| Focal Lens | 3 ~ 9mm Vari-Focal Lens |
| Lens Type | Motorized / Auto Iris (DC) |
| Max Aperture | F1.4 |
| Mount Type | Board-in Type |
| Video | |
| Video Resolution | 3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288) / |
| Frame Rate | Main Stream 3M (1~20fps) / 1080P / 720P (1 ~ 25/30fps) Sub Stream D1/CIF(1 ~ 25/30fps) |
| Bit Rate | H.264: 32K ~ 8192Kbps, |
| Audio | |
| Compression | G.711a / G.711u/ PCM |
| Interface | 1/1 channel In/Out |
| Network | |
| Wi-Fi | N/A |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Max User Access | 20 Users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Compatibility | ONVIF Profile S |
| Auxiliary Interface | |
| Memory Slot | Micro SD, Max 64GB |
| RS485 | N/A |
| Alarm | 2/1 channel In/Out |
| General | |
| Power Supply | DC12V, PoE (802.3af |
| Power Consumption | <7W |
| Working Environment | -4 ℉ ~ 140℉ (-40°C~+60°C), Less than 90%RH |
| Protection | IP66 |
| Dimensions | 4.1" x 12.1" (ф104mm × 306.7mm) ; |
| Weight | 2.76Lbs |
