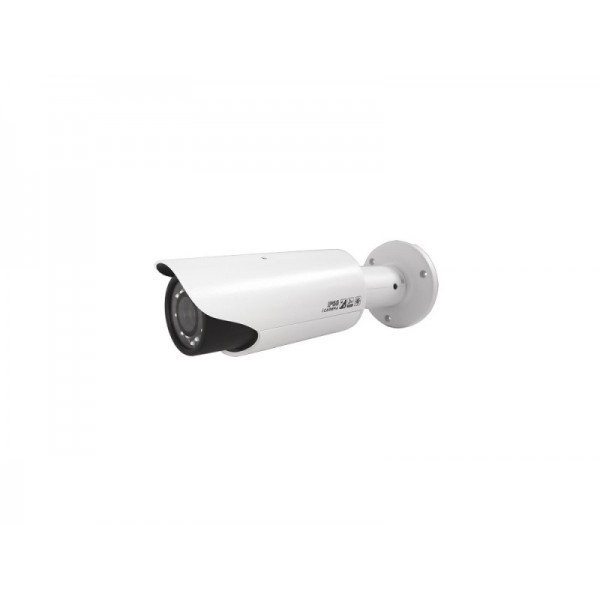

5MP HD IP Camera | IPC-HFW5502C
Features:
- 1/2.5" 5MP Aptina Sensor
- Max 12fps@5MP & 25/30fps@2MP
- DWDR, ICR, 3DNR, ROI, AWB, AGC, BLC
- 4~9mm Motorized Lens
- Audio In/Out, 2/1 Alarm In/Out
- microSD
- DC 12V/PoE
- IP66
Specifications:
| Camera | |
| Image Sensor | 1/2.5” 5Megapixel CMOS |
| Effective Pixels | 2560(H)x1920(V) |
| Electronic Shutter | Auto/Manual, 1/3(4)~1/10000s |
| Mini. Illumination | Color: 0. 01Lux/F1.6; 0Lux/F1.6 (IR on) |
| S/N Ratio | More than 50dB |
| Video Output | 1 channel, BNC(1.0Vp-p/75Ω) |
| Camera Features | |
| IR LEDs Distance | 30m |
| Day / Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / DWDR |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Privacy Masking | Up to 4 areas |
| Scanning System | Progressive |
| White Balance | Auto / Manual |
| Lens | |
| Angle of View | H: 82.4°(Wide)~36.1°(Tele) |
| Focal Control | Auto |
| Focal Lens | 4~9mm motorized |
| Lens Type | Motorized /Auto Iris(DC) |
| Max Aperture | F1.6 |
| Mount Type | Board-inType |
| Video | |
| Video Resolution | 5MP(2560×1920)/3M(2048×1536)/1080P(1920×1080)/720P(1280×720) / D1(704×576) / CIF(352×288) / |
| Frame Rate | Main Stream 5MP(1~12fps)/3M(1~20fps)/1080P/720P(1 ~ 25/30fps) Sub Stream D1/CIF(1 ~ 25/30fps) |
| Bit Rate | H.264H: 32K ~ 8192Kbps |
| Audio | |
| Compression | G.711a / G.711u/ PCM |
| Interface | 1/1 channel In/Out |
| Network | |
| Wi-Fi | N/A |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Max User Access | 20 Users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Compatibility | ONVIF, PSIA, CGI |
| Auxiliary Interface | |
| Memory Slot | Micro SD Max 64GB(-AS/-S) |
| RS485 | N/A |
| Alarm | 2/1 channel In/Out(-AS) |
| PIR Sensor Range | N/A |
| General | |
| Power Supply | DC12V(AC24V optional), PoE(802.3af) |
| Power Consumption | <8.5W |
| Working Environment | -30°C~+60°C(-H: -40°C~+60°C), Less than 95%RH |
| Protection | IP66 |
| Vandal Resistance | N/A |
| Dimensions | ф104mm × 306.7mm |
| Weight | 1.25Kg |
