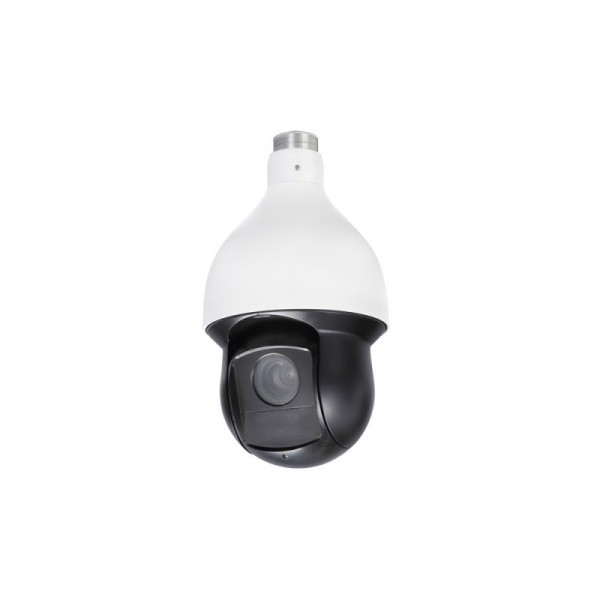

2MP HD IP PTZ Camera | IPC-SD59230S-HN

​​​Features:

• 1/2.8" 2MP Aptina Sensor
• Zoom: 30X Optical, 16X Digital
• Color: 0.05 Lux, B/W: 0.005Lux
• Max. 25/30fps@2MP & 50/60fps@1.3MP
• DWDR, ICR, Ultra DNR
• Pan: Max 400°/s speed, 360° continuous rotation
• 2/1CH Alarm In/Out
• 1/1CH Audio In/Out
• microSD
• DC12V/AC24V/PoE+
• IP66

​​​Specifications:

Camera
Image Sensor	1/2.8” 2MP Aptina Sensor
Effective Pixels	1944(H) x 1092(V), 2Megapixels
Electronic Shutter	1/3 ~ 1/30,000s
Mini. Illumination	Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N Ratio	More than 55dB
Camera Features
Day / Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR
Gain Control	Auto / Manual
Noise Reduction	Ultra DNR (2D/3D)
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Lens
Angle of View	H: 65.1° ~ 2.34°
Focal Control	Auto / Manual
Focal Lens	4.3mm~129mm (30x Optical zoom)
Max Aperture	F1.6~ F5.0
Video & Audio
Audio In	1CH In
Audio Out	1CH Out
PTZ
Zoom	16x Digital Zoom
Pan / Tilt Range	Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°
Preset Speed	Pan: 400° /s; Tilt: 300° /s
Preset	N/A
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Manual Speed	Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Speed Setup	Human-oriented focal length/speed adaptation
Power Up Action	Auto restore to previous PTZ and lens status after power failure
Focus Length	100mm~ 1000mm
Idle Motion	Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Recording
Recording Resolution	1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF
Frame Rate (fps)	Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) Sub Stream 1 D1/CIF(1 ~ 25/30fps) Sub Stream 2 720P(1~50/60fps), D1/ CIF (1 ~ 25/30fps)
Bit Rate	H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Max User Access	20 Users
Smart Phone	iPhone, iPad, Android, Windows Phone
Compatibility	ONVIF PSIA CGI
Auxiliary Interface
Memory Slot	microSD, Max 64GB
Alarm	2/1 channel In/Out
General
Power Supply	AC24V/ DC12V+POE plus Optional
Power Consumption	DC12V: 13W, 20W (IR on) AC24V: 13W, 23W (IR on)
Working Environment	DC12V: -30ºC ~ 60ºC / Less than 90% RH AC24V: -40ºC ~ 70ºC / Less than 90% RH
Protection	IP66
Dimensions	186.0(mm) x 309(mm)
Weight	3.5kg
