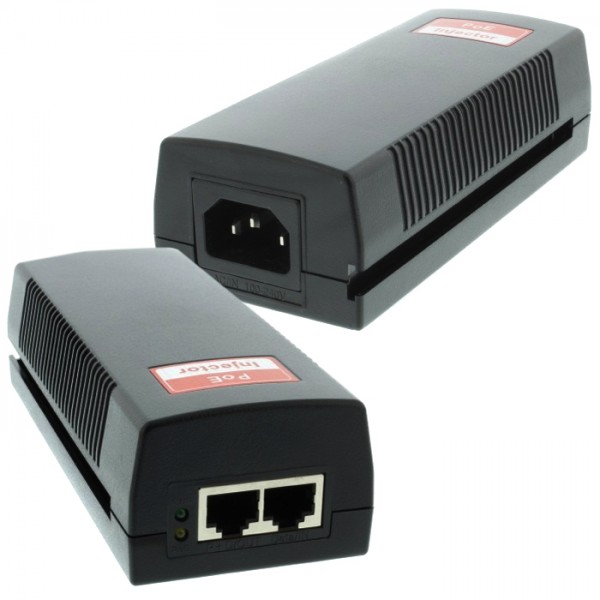

OP-POE-I100H | 19W 100Mbps POE INJECTOR

OP-POE-I100H | 19W 100Mbps POE INJECTOR
Brand: None
Product Code: OP-POE-I100H
Availability: In Stock
Qty:
   - OR -

Details

POE-I100H is a economic single port, high-power PoE Injector. Generating up to 19W, POE-I100H supplies remote power for IP camera appication. It complies to IEEE802.3af standards and can work with 10/100Base-T networking devices.

Features

  • 1 Port at 10/100/1000 Mbps
  • Supports Up to 19W of POE power
  • Compatible with IEEE 802.3at Standard
  • Easy Installation - Parallel Slide-in Design
  • Support 10/100 Base-T Lan Environment
  • Safety Protection on Low Power Devices

Specifications

No. OF POE Ports 1
Pass Through Data Rates 10/100 Mbps
Pin Assignment and Polarity 1/2 (+), 3/6 (–) or 4/5(+),7/8(-)
Output Power Voltage 52 VDC Maximun
User Port Power 19 Watts Maximun
Input Power AC Input Voltage 100 ~ 240 VAC
Requirements AC Input Current 0.8A @ 100-240 VAC
AC Frequency 50 to 60 Hz
Dimensions 2.74" x 1.6" x 5.2" (87.9 mm x 51.3 mm x 166 mm)
Weight .77 lbs
Indicators System Indicator: AC Power (Green)
Connectors RJ-45
Operating Temperature 14º to 45 ℃
Regulatory IEEE 802.3af, RoHS Compliant, CE/FCC
Safety Approvals EN 60950:2006
