POE-SW2400G | 24 PORT GIGABIT POE SWITCH

POE-SW2400G | 24 PORT GIGABIT POE SWITCH
Brand: None
Product Code: OP-POE-SW2400G
Availability: In Stock
Qty:
   - OR -

Details

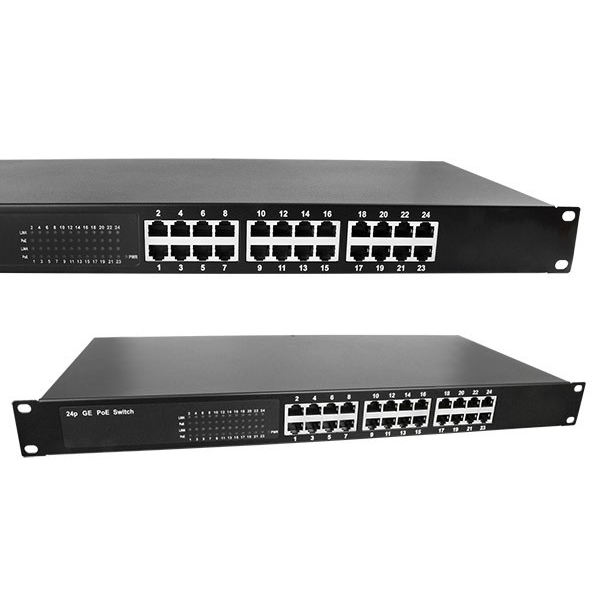

The POE-SW2400G is a 1000Mbps Ethernet Switch with 24 PoE ports. At 250W of power, the POE-SW2400G provides automatic crossover detection functionality for any port. It is simple and friendly to up-link to another switch without crossover cable.

Features

  • 24 PoE Ports at 1000Mbps (1Gbps) each
  • 250W Max Power (up to 8 ports at 30W)
  • IEEE 802.3af/at PoE standard
  • 19” Rack-Mountable
  • Auto-MDI/MDI-X

Specifications

Standard

IEEE 802.3at/802.3af
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE802.3ab 1000Base-TX
IEEE 802.3 Flow Control
Number of PoE Ports 24 PSE/PoE Ports
MAC Address Table 8K
Buffer Memory 256KB
Transmission Method Store and Forward
Filtering/Forwarding Rates

1000Mbps Port - 1,480,000pps
100Mbps Port - 148,880pps
10Mbps - 14,880pps
 Transmission Media

100BaseT Cat. 3, 4, 5 UTP/STP
100/1000BaseTX Cat. 5 UTP/STP
LED Indicators

Per Port: Link/Act, PoE Act/Status
Per Unit: Power
Power Input  100-240VAC, 50-60Hz
Power Output

56V/DC Per Port Output - 30W Max Per Port
8 Ports at Full 30W
Output Supported
Power Consumption  250 Watts (Max)
Dimensions  480 x 200 x 44 mm (L x W x H)
Weight  2.85 kg
Operating Temperature  0° - 40°C
Storage Temperature  -20° - 70°C
Humidity  10 to 90% RH (Non-condesending)
Certifications  FCC Class A, CE
