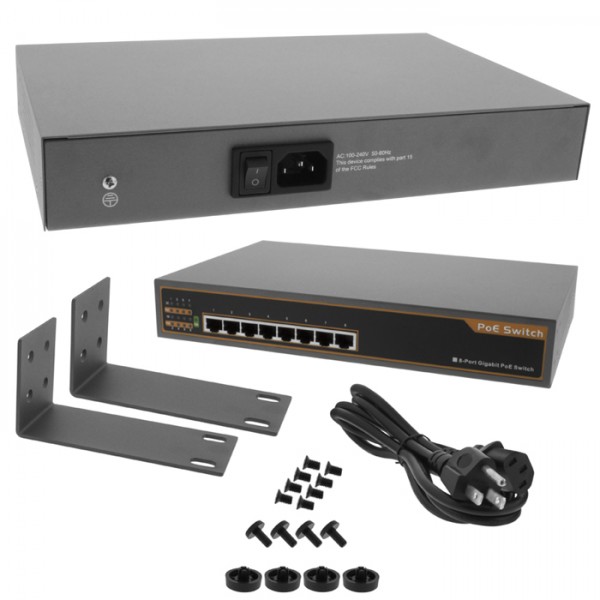

POE-SW800G | 8 PORT GIGABIT POE SWITCH

POE-SW800G | 8 PORT GIGABIT POE SWITCH
Brand: None
Product Code: OP-POE-SW800G
Availability: In Stock
Qty:
   - OR -

Details

The POE-SW800G is a Gigabit Ethernet switch with 8 PoE ports. At 130W of power, the POE-SW800G supplies data and Power over Ethernet (PoE) using a single Cat-5 cable (sold separately). The POE-SW800G is suitable for wireless access points, IP-based surveillance cameras, VoIP phones, and other similar devices. All ports automatically detect devices, speed and cable type making setup quick and easy!

Features

  • 8 PoE Ports
  • 10/100/1000Mbps Data Transfer Speeds
  • 130W Max Power (15.4W per Port)
  • IEEE 802.3af Internet Standard
  • Unmanaged - Ports Automatically Detect Devices
  • Power Protection on Low Power Devices

Specifications

Switch Type Internal Power
Standards

IEEE 802.3af
IEEE 802.3 10 BaseT
IEEE 802.3u 100 BaseTX
IEEE 802.3ab 1000 BaseT
IEEE 802.3x Flow Control
Number of Ports 8 PoE/PSE ports
MAC Address 1K
Buffer Memory 512KB
Transmission Method Store and Forward
Transmission Media 10 BaseT CAT 3,4,5 UTP/STP
100M BaseTx CAT 5 UTP/STP
1000M BaseTx CAT 5,6 UTP/STP
LED Indicators Per Port Link/Act, PoE Act/Status
Power Input 100~240V/AC, 50~60 Hz
Power Output 44-57V/DC
Power Consumption 15W per port, 130W Max
Dimensions H x W x D 11" x 7" x 1.75" (20mm x 58mm x 87mm)
Weight 3.15 lbs.
Operating Temperature 32ºF ~ 140ºF (0ºC ~ 60ºC)
Storage Temperature -4ºF ~ 194ºF (-20ºC ~ 90ºC)
Humidity 10 ~ 90% (Non-Condensing)
